DSO / SSO

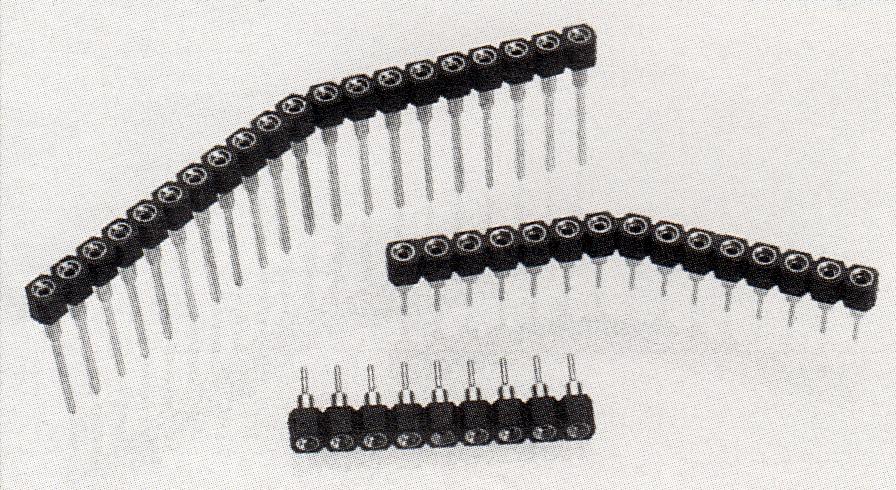

Break Away Strip Socket : Soldertail DIP & SIP Strip Socket

DSO

SSO

PART NUMBER

NUMBER OF PINS

DIMENSIONS

Terminal Style

A

B

C

DSO6XXXXXXX

4-128

*

.700 (17.78)

.600 (15.24)

Soldertail

PART NUMBER

NUMBER OF PINS

DIMENSIONS

Terminal Style

A

SSOXXXXXXX

2-64

See Figure 2

Soldertail

bulletMolded plastic strip sockets can be divided into any length.
bulletIdeal for custom socket applications.
bulletSockets are XY stackable.
bulletMachined outer sleeve with BeCu inner contact.
bulletSocket pins feature closed-end construction eliminating any solder wicking problems.
bulletSocket pins available in a wide variety of styles and plating options.

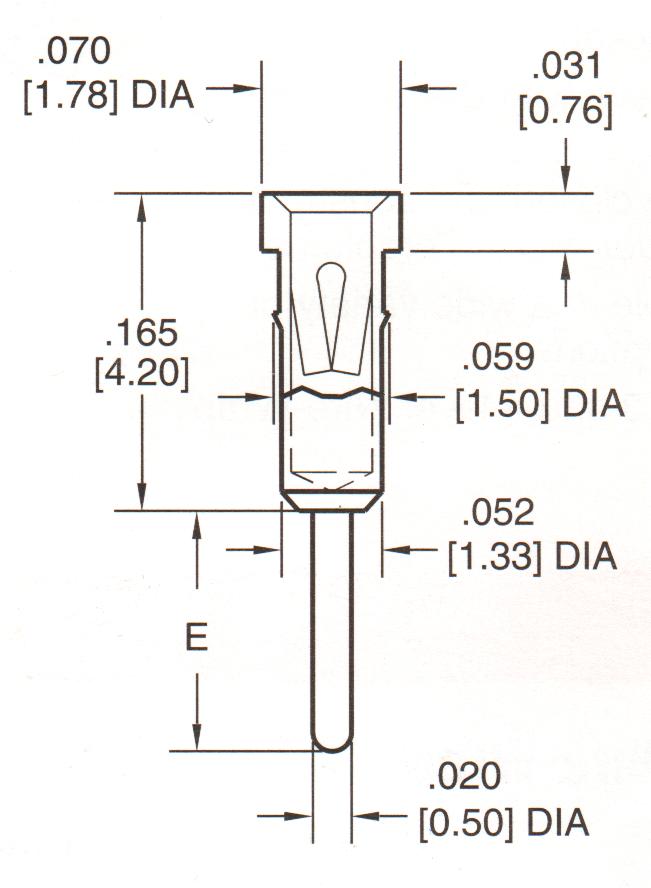

TERMINAL STYLES


(E Dim.) Pin Number

A - .125 (3.18) …..3000

B - .143 (3.63) …..3080

C - .180 (4.57) …..3010

D - .275 (6.99) …..3190



ORDERING INFORMATION

DSO

0

18

TL

A

31

Series

DIP Spacing

Number of Pins

Plating of Sleeve

Solder Tail Corresponding

Plating of Inner Contact

Dual – DSO

0 - No Spacing (For Single-in-Line)

2 - 64 (Single Strips)

TL – Tin Lead 200µ" (5.08µm)

(E Dim.) Pin Number

30 – Gold 10µ" (0.25µm)

Single – SSO

6 - .600 (15.24) centers

4 - 128 (Dual Strips)

GH – Gold 10µ" (0.25µm)

A - .125 (3.18) …..3000

31 – Gold 30µ" (0.75µm)

GK – Gold 30µ" (0.75µm)

B - .143 (3.63) …..3080

36 – Tin lead 200µ" (5.08µm)
TF – Tin  200µ" (5.08µm)

C - .180 (4.57) …..3010

34 – Tin  200µ" (5.08µm)

D - .275 (6.99) …..3190
