DSMI Electronics SA (DSMI) acquires Precicontact SA assets

All the standard products are available as ROHS compliant and as non ROHS upon request

[left.htm]



UW / SW / W

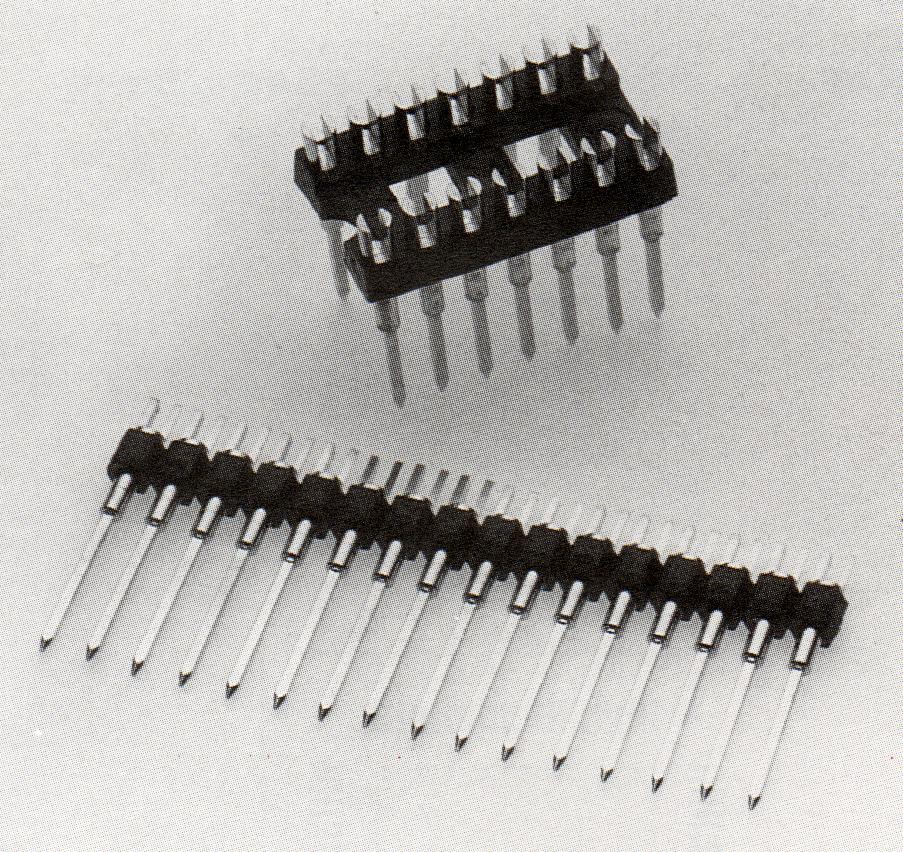

Wire-Wrap® Dip & Sip Strip Adapters

bulletOpen and closed insulators.
bulletAdapters are XY stackable.
bulletPrecision machined pins.
bulletUsed for interposing discrete components.
bulletLarge variety of styles.
bulletBreak-away strips available in lengths of 2-64, breakable at .100 (2.54) increments.
bulletWire-Wrap® lengths are available in 1, 2 and 3 levels.





STANDARD PARTS ( DIP ADAPTERS )

PART NUMBER

NUMBER OF PINS

DIMENSIONS (See Fig. 1)

A

B

C

D (Open)

D (Closed)

UWX306XXX

6

.300 (7.62)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.093 (2.36)

UWX308XXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.093 (2.36)

UWX314XXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.125 (3.18)

UWX316XXX

16

.800 ( 20.32)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.125 (3.18)

UWX318XXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.125 (3.18)

UWX320XXX

20

1.000 (25.40)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.125 (3.18)

UWX422XXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.093 (2.36)

.125 (3.18)

UWX324XXX

24

1.200 (30.48)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.110 (2.79)

UWX624XXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.093 (2.36)

.125 (3.18)

UWX328XXX

28

1.400 (35.56)

.400 (10.16)

.300 (7.62)

.110 (2.79)

.125( 3.18)

UWX628XXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.093 (2.36)

N/A

UWX632XXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.119 (3.02)

.110 (2.79)

UWX640XXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.093 (2.36)

.125 (3.18)

UWX648XXX

48

2.400 (60.96)

.700 (17.78)

.600 (15.24)

.093 (2.36)

N/A

UWX964XXX

64

3.200 (81.28)

1.000 (25.40)

.900 (22.86)

.093 (2.36)

N/A



STANDARD PARTS ( SIP ADAPTERS )

PART NUMBER

NUMBER OF PINS

DIM. F (See Fig. 2)

SWX020XXX

20

2.000 (50.80)

SWX032XXX

32

3.200 (81.28)

SWX064XXX

64

6.400 (162.56)

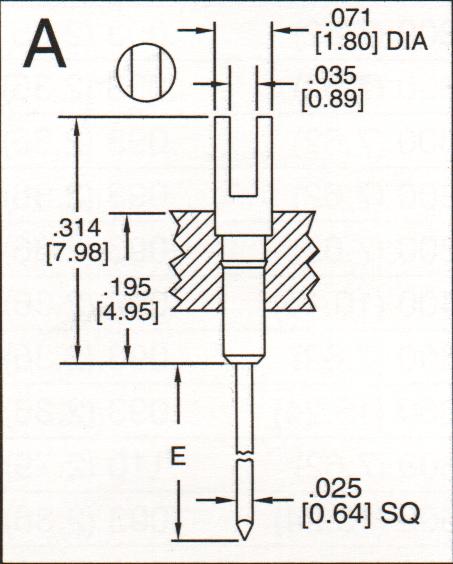

TERMINAL STYLES

3003 3002 3005






ORDERING INFORMATION

U

W

A

6

24

TL

3

Styles

Corresponding

DIP Spacing

Number of Pins

Plating of Terminals

Terminal Length

U - Open Insulator

Terminal Loose Style Pin Number

0 - Strip Socket Only

TL - Tin Lead 150µ" (3.80µm)

(E Dimension)
TF - Tin  150µ" (3.80µm)

S - Strip (Breakaway)

A………………..3003

3 - .300 (7.62) centers

 GH - GoId 10µ" (0.25µm)

3 - 3 LeveI - .500 (12.70)

(Leave Blank for Closed Insulator)



C………………..3002

4 - .400 (10.16) centers

D………………..3005

6 - .600 (15.24) centers

9 - .900 (22.86) centers

 NOTE : For detailed insulator drawings, see pages 2 and 3.





Specifications :

Terminal - Brass per QQ-B-626

Operating Temperature - -65° C to +125° C

All Platings - Over 50µ" (1.27µm) Nickel over 5µ" (0.13µm) Copper

Insulator - Glass-filled Polyester Rated to UL94V-O

PCB Hole Size - .040 +/- .003 (1.02 +/- 0.08) solder termination
