DSMI Electronics SA (DSMI) acquires Precicontact SA assets

All the standard products are available as ROHS compliant and as non ROHS upon request

[left.htm]



UWW / WW

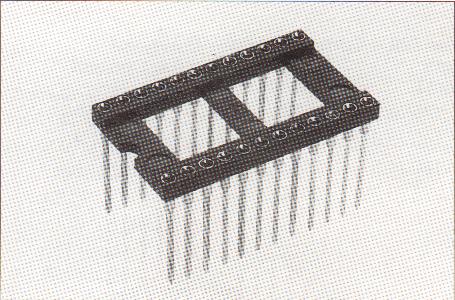

Open Frame Wire-Wrap® Dip Socket

bulletOpen insulator with ladder construction.
bulletSockets are XY stackable.
bulletMachined outer sleeve with BeCu inner
contact.
bulletSocket pins feature closed-end construction
eliminating any solder wicking problems.
bulletSocket pins available in a wide variety of
styles and plating options.
bulletAvailable with 2, 3 level Wire_Wrap length



Standard Parts

DIMENSIONS (See Fig. 1)

PART NUMBER

NUMBER OF PINS

A

B

C

D

UWW306XXXXX

6

.300 (7.62)

.400 (10.16)

.300 (7.62)

.093 (2.36)

UWW308XXXXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.093 (2.36)

UWW314XXXXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.093 (2.36)

UWW316XXXXX

16

.800 (20.32)

.400 (10.16)

.300 (7.62)

.093 (2.36)

UWW318XXXXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.093 (2.36)

UWW320XXXXX

20

1.000 (25.40)

.400 (10.16)

.300 (7.62)

.093 (2.36)

UWW422XXXXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.093 (2.36)

UWW324XXXXX

24

1.200 (30.48)

.400 (10.16)

.300 (7.62)

.093 (2.36)

UWW624XXXXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.093 (2.36)

UWW328XXXXX

28

1.400 (35.56)

.400 (10.16)

.300 (7.62)

.125 (3.18)

UWW628XXXXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.093 (2.36)

UWW632XXXXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.125 (3.18)

UWW640XXXXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.093 (2.36)

UWW648XXXXX

48

2.400 (60.96)

.700 (17.78)

.600 (15.24)

.093 (2.36)

UWW964XXXXX

64

3.200 (81.28)

1.000 (25.40)

.900 (22.86)

.093 (2.36)

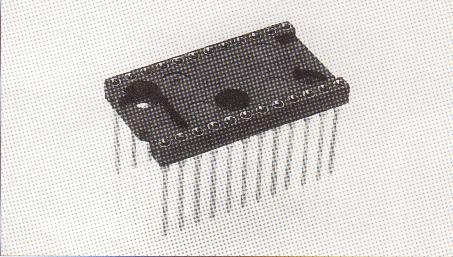

Closed Frame Wire-Wrap® Dip Socket

bulletClosed insulator.
bulletSockets are XY stackable.
bulletMachined outer sleeve with BeCu inner contact.
bulletSocket pins feature closed-end construction eliminating any solder wicking problems.
bulletSocket pins available in a wide variety of styles and plating options.
bulletAvailable with 2, 3 level Wire_Wrap length



Standard Parts

DIMENSIONS (See Fig. 1)

PART NUMBER

NUMBER OF PINS

A

B

C

D

WW308XXXXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.093 (2.36)

WW314XXXXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.093 (2.36)

WW316XXXXX

16

.800 (20.32)

.400 (10.16)

.300 (7.62)

.093 (2.36)

WW318XXXXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.093 (2.36)

WW320XXXXX

20

1.000 (25.40)

.400 (10.16)

.300 (7.62)

.093 (2.36)

WW422XXXXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.093 (2.36)

WW624XXXXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.093 (2.36)

WW628XXXXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.093 (2.36)

WW632XXXXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.125 (3.18)

WW640XXXXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.093 (2.36)





FIG 1 FIG 2




ORDERING INFORMATION

UWW

3

18

TL

A

31

Series

DIP Spacing

Pin Number

Plating 0f Sleeve

Loose Pin Number

Plating of Inner Contact

UWW (Open)

3 - .300 (7.62) centers

TL - Tin Lead 200µ" (5.08µm)

Solder Tail Length  See Fig 2    x- E ( E )...........xxxx-x

31 - GoId 30µ" (0.75µm)

WW (Closed)

4 - .400 (10.16) centers

TB - Tin Lead 150µ" (3.80µm)

2 - .360 (9.15) . . . . . ..3001-2

 30 - GoId 10µ" (0.25µm)

6 - .600 (15.24) centers

GH - GoId lOµ" (0.25µm)

3 - .500 (12.70) . . . . ..3001-3
      TF - Tin  200µ" (5.08µm)



Specifications:

Inner Contact - BeCu per QQ-C-533.

Outer Sleeve - Brass per QQ-B-626.

Insulator - Glass-filled Polyester Rated to UL94V-O.

Operathg Temperature - -650C to +1250C.

PCB Hole Size - .035 +- .003 (0.89 +- 0.08) solder termination.

Ail Platings - Over 100 µ" (2.54 µm) minimum Nickel over 5 µ" (013 µm) minimum Copper.

IC Pin Dimension Range - .016 (0.41) to .025 (0.63) round, .125 (318) minimum length,
.009 (0.23) x .015 (0.38) to .015 (0.38) x .022 (0.56) rectangular.

Insertion Force - 186 grams.

Withdrawal Force - 92 grams.
