UX

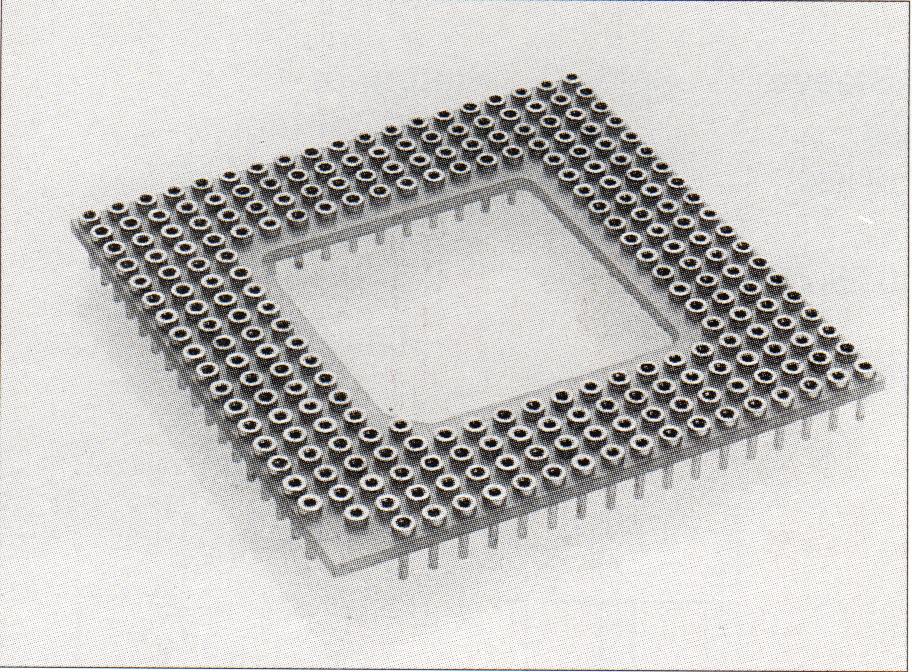

Glass Epoxy Pin Grid Array Socket and Adapter

bulletAvailable for all devices.
bulletAny footprint can be prototyped in less than one week.
bulletScrew machine contacts feature low insertion and withdrawal force inner clips.
bulletOptions include: Wire-Wrap®, Soldertail, adaptor, surface mount and low-profile options.

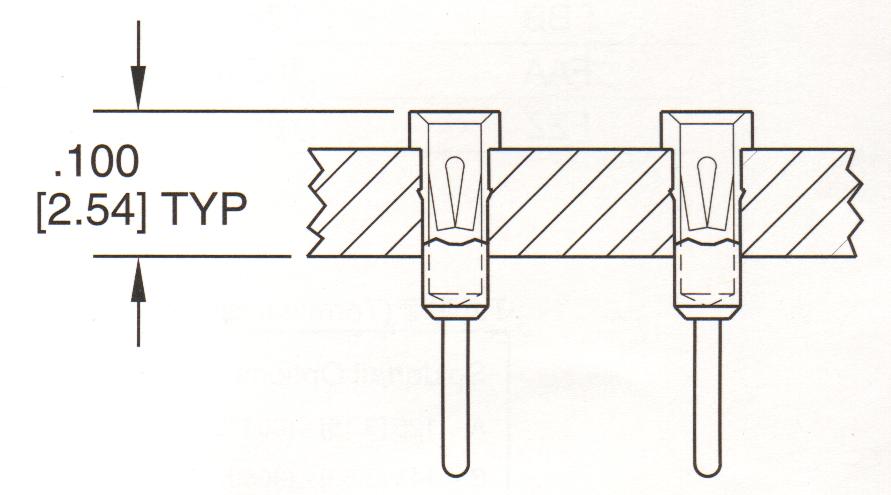

Table 1           C : Adapter Terminal Options

FIG 1

FIG.2



PIN TYPE

FIG

A

B

C

D

E

LOOSE PIN NUMBER

FAA

1

.154 (3.92)

.156 (3.95)

.165 (4.20)

.475 (12.07)

.024 (0.62)

3050

FBB

1

.154 (3.92)

.156 (3.95)

.124 (3.15)

.434 (11.02)

.019 (0.48)

3168

FCC

1

.119 (3.02)

.156 (3.95)

.165 (4.20)

.440 (11.17)

.024 (0.62)

3155

FDD

1

.533 (14.05)

.156 (3.95)

.177 (4.50)

.886 (22.50)

.030 (0.76)

3158

BEE

1

.120 (3.05)

.156 (3.55)

.093 (2.35)

.352 (8.94)

.020 (0.50)

3093

BFF

1

.120 (3.05)

.156 (3.55)

.262 (6.66)

.522 (13.26)

.020 (0.50)

3094

AGG

1

.187 (4.75)

.156 (3.95)

.165 (4.20)

.476 (12.10)

.024 (0.62)

3009

FZZ

1

.154 (3.92)

.125 (3.18)

.165 (4.20)

.475 (12.07)

.019 (0.48)

3137

DKK

2

.335 (8.51)

.125 (3.18)

.125 (3.18)

.585 (14.86)

.019 (0.48)

80152



Style : Leave blank

Style : W


See PINS

2 - E=.360 (9.15) . . . . . ..3001-2

3 -E= .500 (12.70) . . . . ..3001-3

Style : I





ORDERING INFORMATION





U

A

X

C

14

132

TL

FAA

72

Type

Alternate Footprint

Style

Grid Size

Number of Pins

Plating of Sleeve

Terminal Style

Plating of Inner Contact Blank if adapter

U - Open Insulator

Leave Blank for Soldertail

Footprint

GH - Gold 10µ" (0.25µm)

FAA   or   See Table 1

70 - GoId 10µ" (0.25µm)

(Leave Blank for Closed Insulator)

C - Adaptor

TL - Tin Lead 200µ" (5.08µm)

72 - GoId 30µ" (0.75µm)

I - SMT

TB - Tin Lead 180µ" (3.80µm) 74 - Tin  200µ" (5.08µm)

L - Low-Profile

TF - Tin d 200µ" (5.08µm)

74F - Tin  200µ" (5.08µm) with lubricant

W - Wire-Wrap®

**22 - Gold 10µ" (0.25µm)
**23 - GoId 30µ" (0.75µm)





Performance Specifications:

Minimum Duability - 50 cycles

Insertion Force - 43g per contact*

Withdrawal Force - 23g per contact*

**Insertion Force - 22g per contact*

**Withdrawal Force - 10g per contact*

Maximum Operating Current - 1 Ampere per contact

Dielectric Withstanding Voltage - 1000V RMS for 1 Minute

Minimum Insulation Resistance - 5000 megohms

Pin-to-Pin Capacitance - <0.4pf

Contact Resistance - <0.4mW

*With .0180 (0.457) Æ Spherical Radius Pin

**Special Ultra Low Insertion Force Clip




Specifications:

Inner Contact - BeCu per QQ-C-533

Outer Sleeve - Brass per QQ-B-626

Insulator - Glass-filled Epoxy, G-10, FR-4, Rated to UL94V-O

Operating Temperature - -650C to + 1250C

Soldering - Wave solder, vapor phase and I.R.

All Platings - Over 50µ" (1.27 µm) minimum Nickel over 5µ" (0.13µm) minimum Copper

IC Pin Dimension Range - .016 (0.41) to .025 (0.63) round, .125 (3.18) minimum length,

.009 (0.23) x .015 (0.38) to .015 (0.38) x .022 (0.56) rectangular
